Powersoft k20 dsp
Home – Powersoft k20 dsp
Powersoft k20 dsp
From £70/day

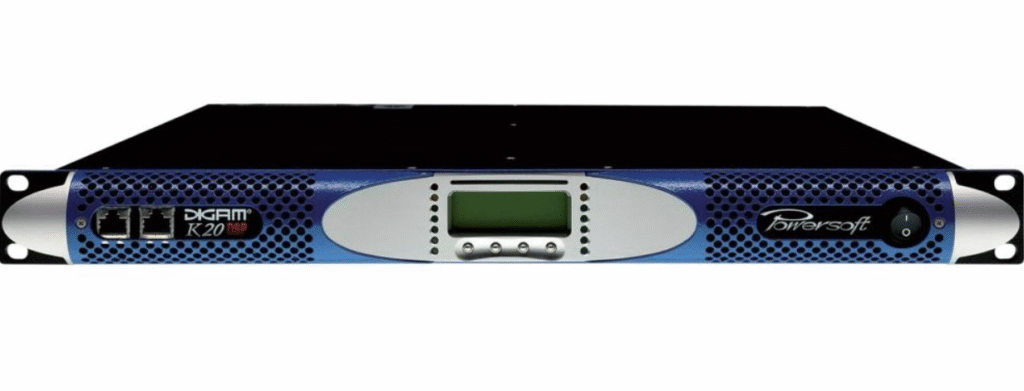

The Powersoft K20 DSP is a high-performance, 2-channel professional power amplifier built for large-scale sound reinforcement. It delivers exceptional efficiency, power, and reliability, making it ideal for demanding live and installation environments. With advanced onboard DSP, users can fine-tune settings to match their specific system requirements with precision and control.
Suitable Applications
Touring rigs
Large sound systems
Nightclubs
General Specifications
Output Power
2 Ω: 2 × 9000 W RMS
4 Ω: 2 × 5200 W RMS
8 Ω: 2 × 2700 W RMS
Mono Bridged Mode
4 Ω: 18,000 W RMS
8 Ω: 10,400 W RMS
Maximum Output
- Maximum Output Voltage: 225 V
- Maximum Output Current: 125 A
Power Supply & Consumption
Power Supply: Universal, regulated switch-mode with PFC
Operating Voltage: 100–240 V ±10%, 50/60 Hz
Idle Consumption: ~88 W at 230 V
Audio Performance
Frequency Response: 20 Hz – 20 kHz (1 W @ 8 Ω, ±0.5 dB)
Signal-to-Noise Ratio: >110 dBA
Crosstalk Separation: >66 dB @ 1 kHz
